Understanding V-Shaped Wire and Its Function
What Is V-Shaped Wire?

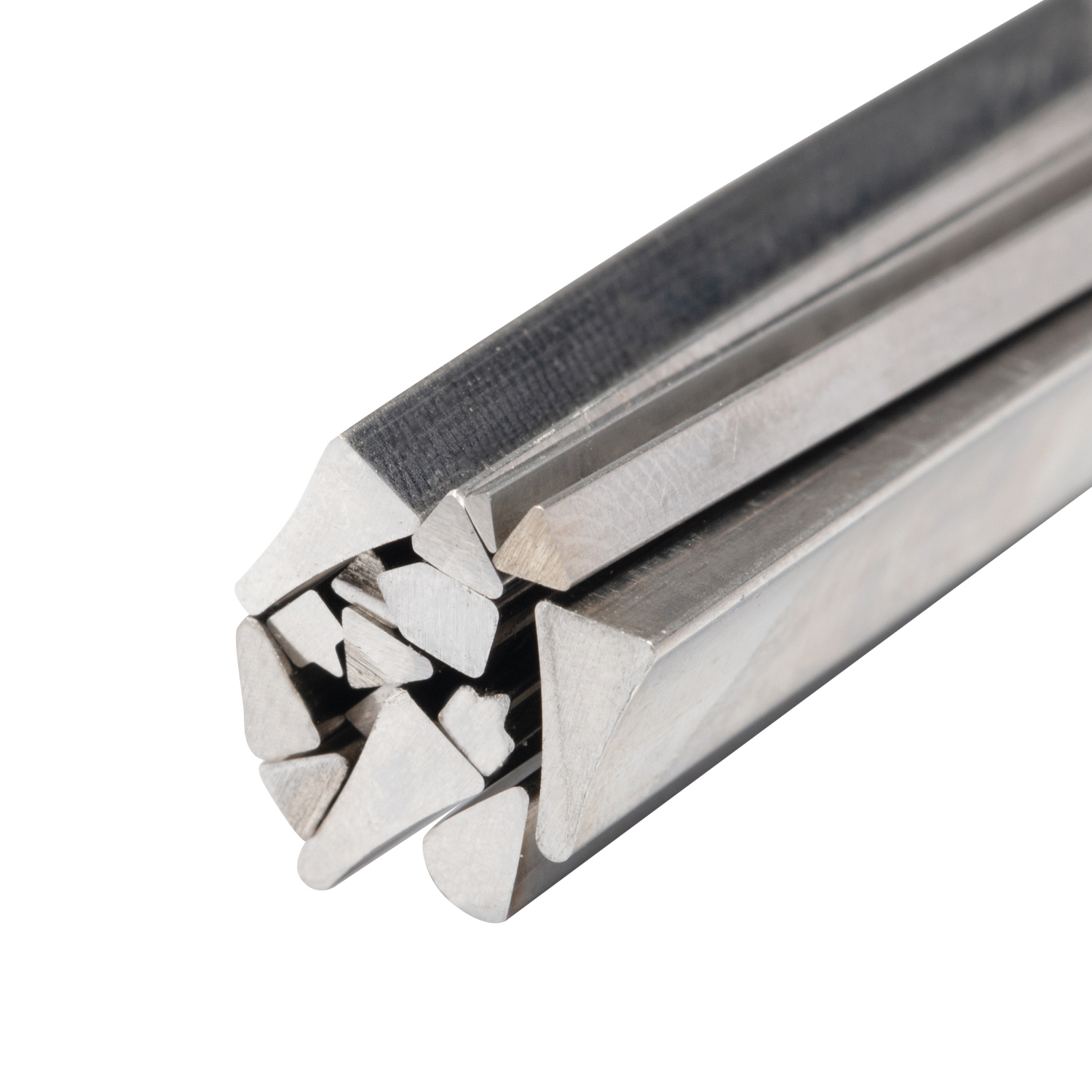

V-wire or profile wire, also known as stainless steel wedge wire, is a wire with a V-shaped or triangular cross-section. The unique geometry of the wire renders it optimal for screening and filtration across different industries. The V-shaped wire is typically welded onto support rods to produce stiff and efficient filter screens.
Key Features of V Wire Screens
It is defined as a type of screen wire because it belongs to a family of shapes that are used to create screens, which have widespread applications. It has a changing height, width, and radius on the nose and corners, which offers better slot control and mechanical performance.
Advantages of Using V Wire in Screening
Non-Clogging Design for Efficient Filtration
Self-cleaning capability due to the wedge-shaped profile makes V wire screens especially effective in applications where clogging could reduce throughput. The tapered slots allow particles to pass through or slide off rather than getting stuck.
High Strength and Corrosion Resistance
Wedge wire mesh is known for its durability, high strength, and corrosion resistance. This makes it ideal for harsh environments such as mining operations or chemical processing plants.
Long Service Life in Harsh Conditions
Wedge wire screen (water well screen) has the characteristics of corrosion resistance, safety and reliability, good heat resistance, good mechanical properties, and long service life. These properties ensure that the filters can operate continuously with minimal maintenance.
Typical Applications of V Wire Screens
Water Treatment and Filtration Systems

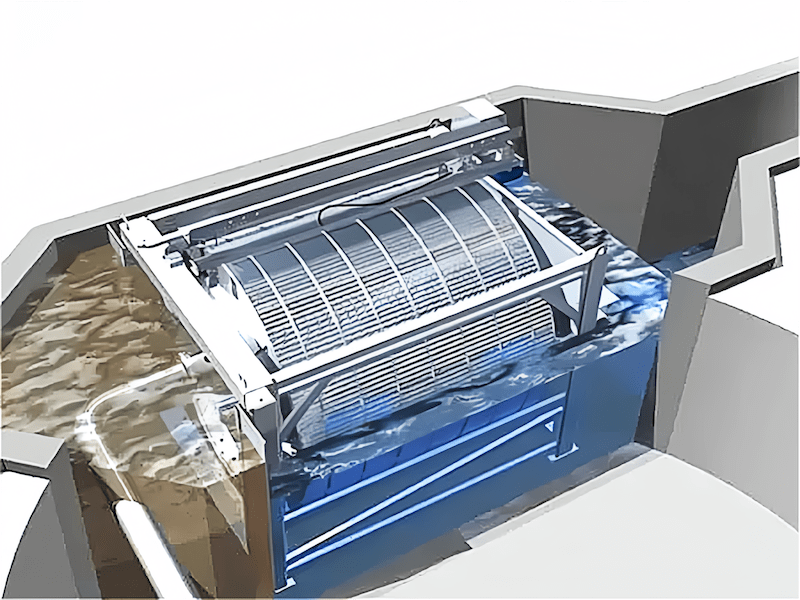

Wedge wire screens are used in intake screens, wastewater treatment, and sand filtration systems. Their non-clogging design helps maintain consistent flow rates even with variable water quality.
Mining and Aggregate Processing
In mining operations, vibrating screen panels and centrifuge baskets for solid-liquid separation utilize wedge wire’s strength to endure abrasive materials while maintaining efficiency.
Food and Beverage Industry Usage
Sanitary-grade wedge wire for malt production, brewing, and juice filtering ensures food safety compliance while delivering effective filtration performance.
Product Spotlight from Tianjin Jingzhou Metal Products Co., Ltd.
Stainless Steel V Wire Screen Cylinder
Tianjin Jingzhou Metal Products Co., Ltd. offers stainless steel screen cylinders made from precision-welded V-shaped wires. We uphold the concept of serving customers well and provide optional customized services according to the product needs of different customers.
Wedge Wire Screen Panel for Mining
Engineered for demanding high-load mining environments, our wedge wire panels are manufactured from non-magnetic stainless steel. This key feature effectively avoids interference with magnetic separation processes and prevents unwanted ferrous particle buildup, enhancing operational efficiency and longevity.
Continuous Slot Water Well Screen Pipe
These pipes feature continuous slots formed by wrapping V-shaped wires around support rods. Wedge wire screen (water well screen) consists of warp rods and wires. The rod material can be round wire, triangular wire, or trapezoidal wire. The warp wire is a triangular wire (V-shaped wire).
Engineering Details Behind the Design
Precision Welding for Structural Integrity

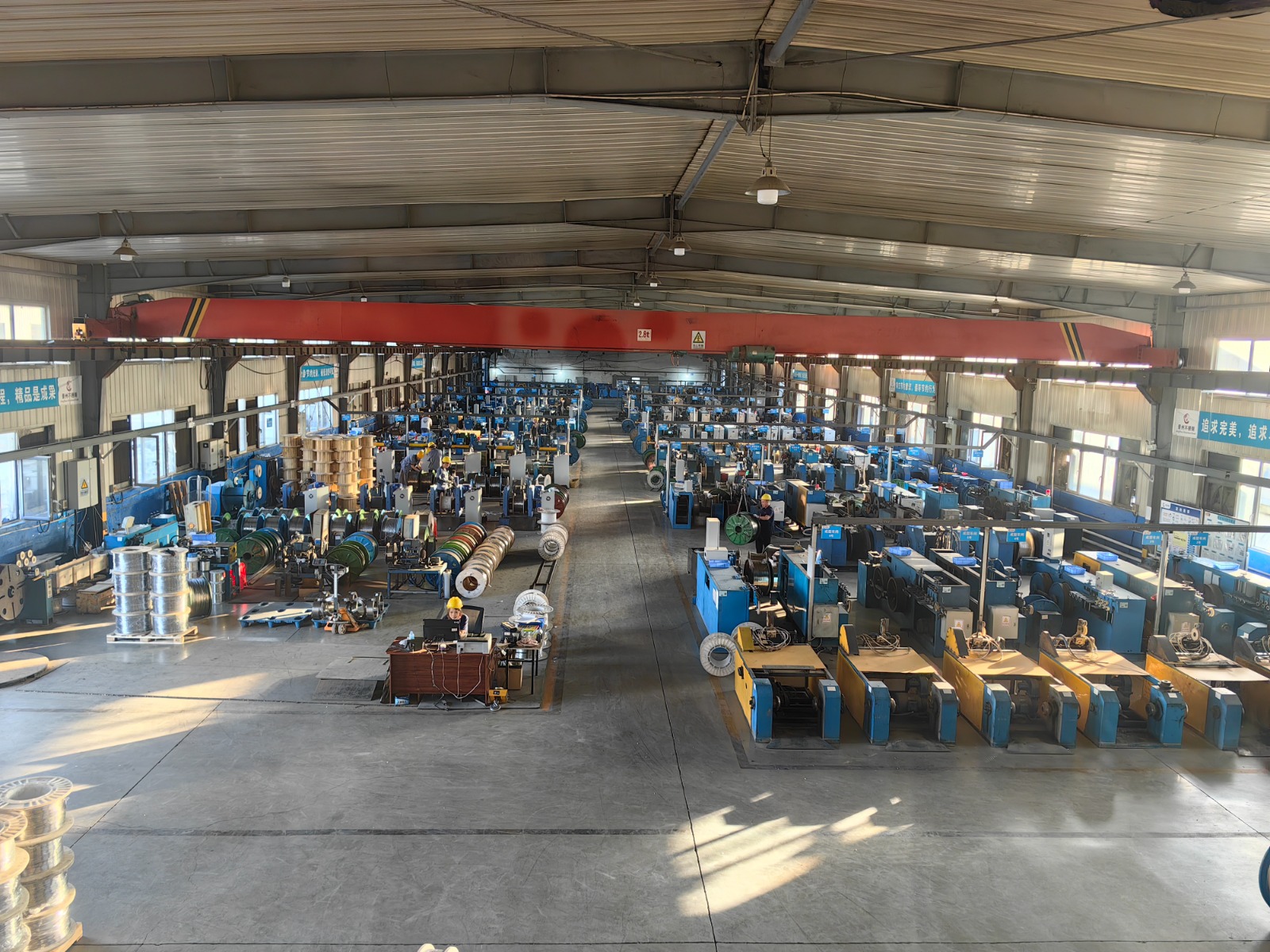

Advanced resistance welding techniques are improving product precision and lifespan. At Tianjin Jingzhou, we use automated welding lines that ensure consistent bonding between wires and supports.
Custom Slot Sizes for Specific Flow Rates
We offer custom slot sizes tailored to your application. The market is shifting toward bespoke solutions—custom slot size, diameter, length, and profile shape—to meet specific industrial requirements.
Material Selection: 304 vs. 316L Stainless Steel
304 and 316L stainless steel remain the most common materials due to their corrosion resistance and affordability. For more aggressive media exposure, we recommend 316L due to its enhanced pitting resistance.
How to Choose the Right V Wire Screen
Matching Slot Size to Application Needs
Slot size determines what particles will be filtered out. Smaller slots are ideal for fine filtration, like food processing; larger slots suit coarse separation tasks like mining.
Considering Flow Rate and Pressure Requirements
Ensure your selected screen can handle the required flow rates without compromising structural integrity. Our engineers assist with calculations based on application specs.
Importance of Material Grade for Longevity
For corrosive environments or high-temperature service, the employment of more superior grades of stainless steel like 316L or Duplex alloys ensures long service life with less maintenance.
Maintenance and Performance Guidelines
Cleaning Methods for Extended Life
Use backflushing or ultrasonic cleaning, depending on the nature of the contamination. Avoid abrasive brushes that may damage weld joints or slot edges.
Inspection Guidelines for Optimum Operation
Periodically inspect for wear marks at weld joints or deformation under pressure loads. Replace damaged components immediately to avoid system failures.
FAQ
Q: What is the use of a V-wire screen?
A: It has its significant uses in filtration systems in water treatment, mining, food processing, and oil & gas industries due to its non-clogging nature and strength.
Q: How do I choose between 304 vs 316L stainless steel?
A: Choose 304 for general use; choose 316L for applications involving corrosive fluids or sea water environments due to its greater corrosion resistance.
Q: Can I get special sizes or slot sizes?
A: Yes. We offer OEM/ODM service and produce as per drawing or specification. Please send us your technical specifications for tailor-made solutions from Tianjin Jingzhou Metal Products Co., Ltd.
