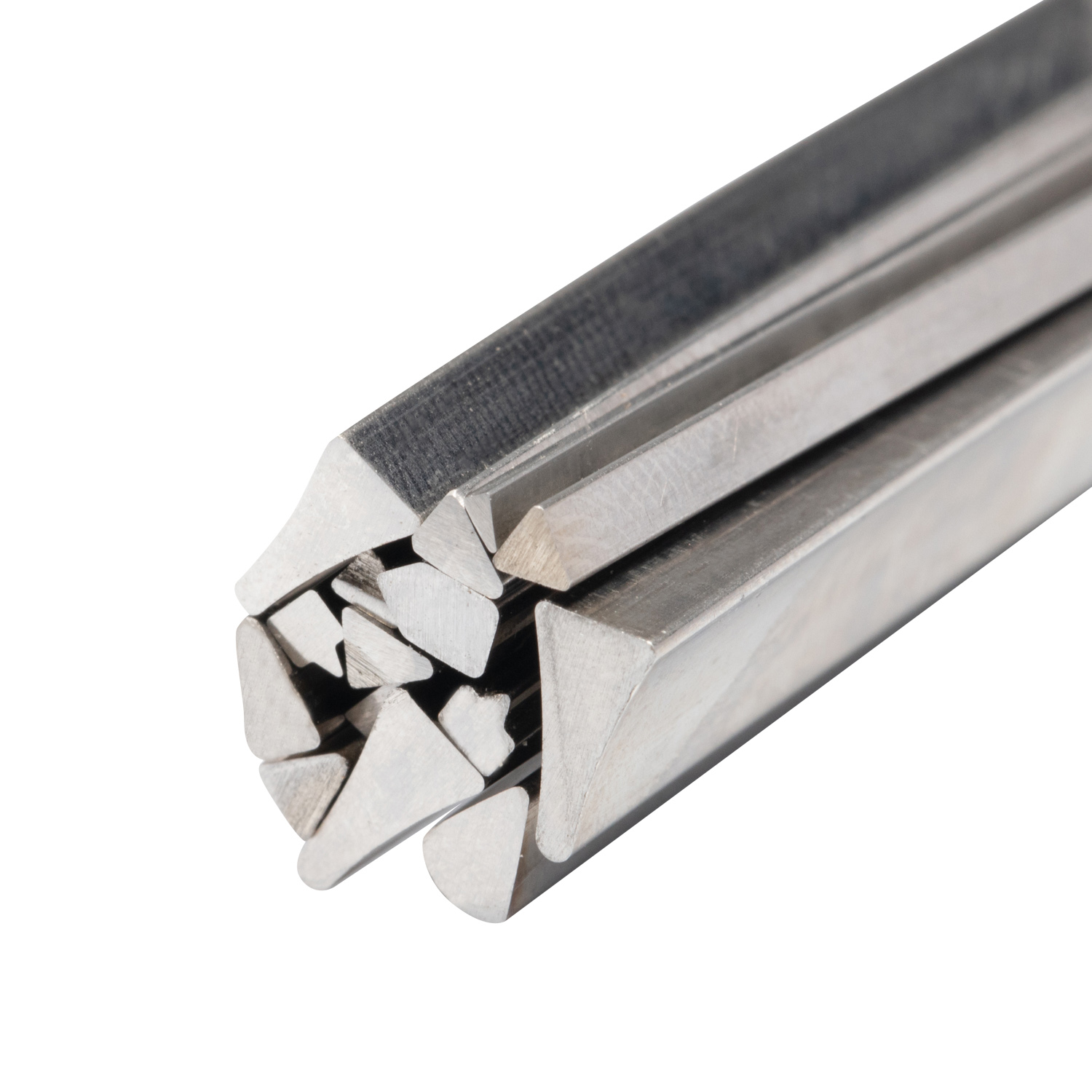

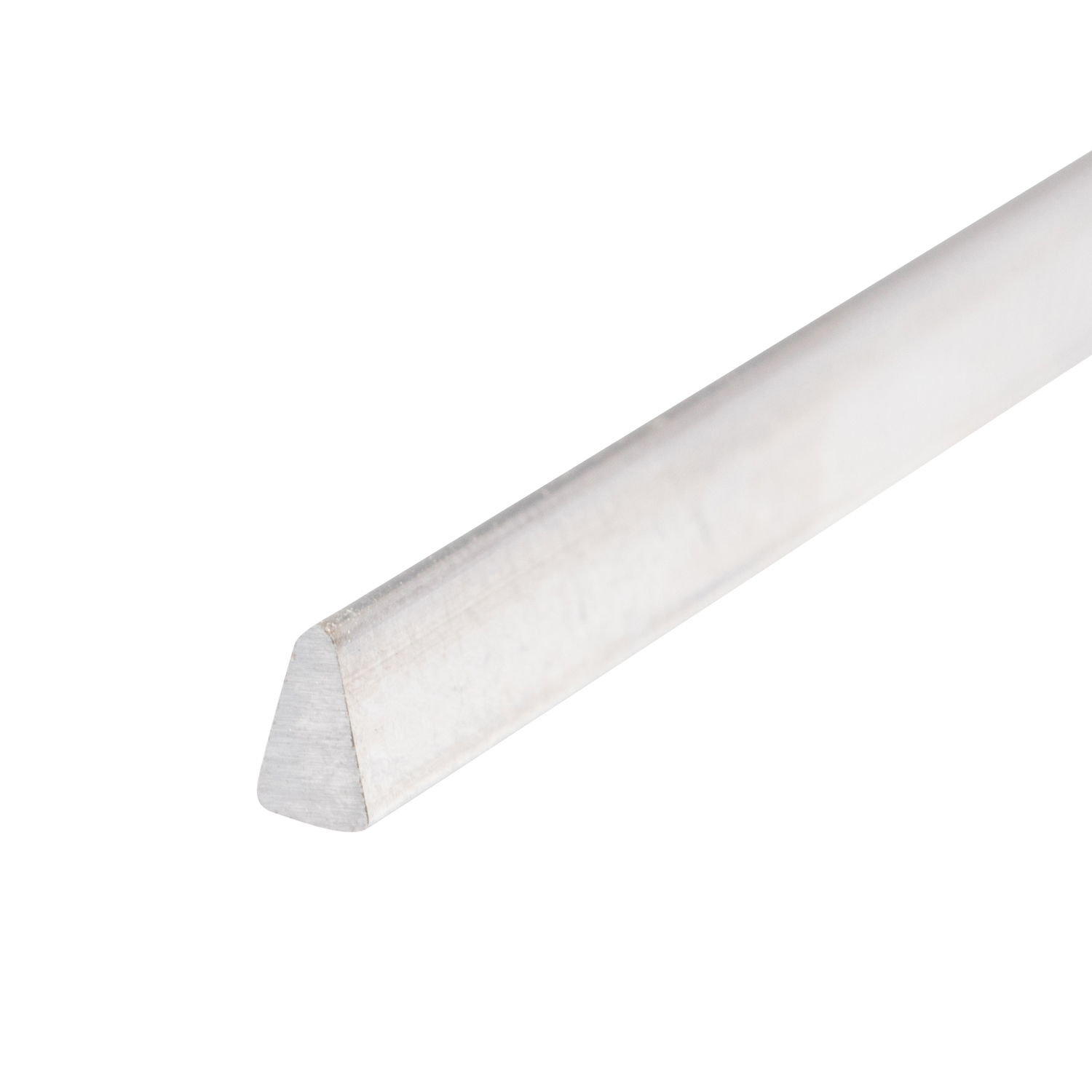

Wedge wire /Triangle Wire (V-slot wire)

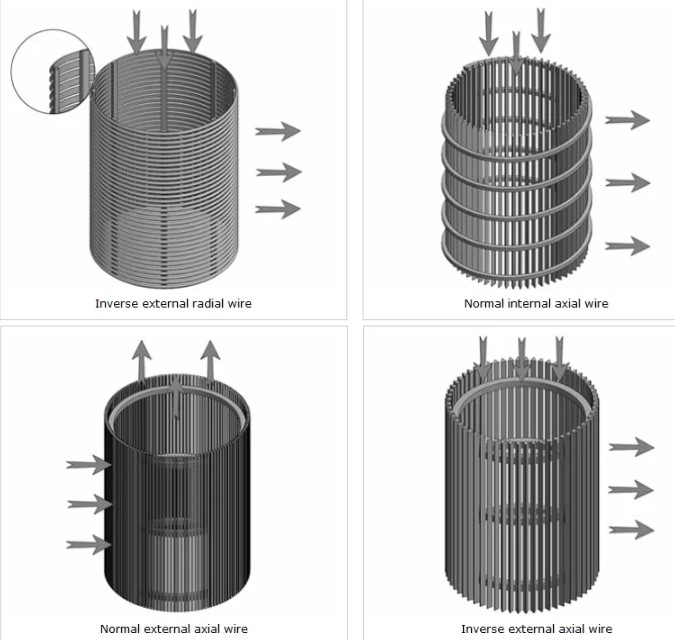

Wedge wire screen is mainly composed of profile bar(wedge wire) and support rods. The uniform gap between the wires provides good filtering performance, while the support rods play a fixing and supporting role and determine the flow direction of the fluid.
Advantages: uniform gaps, high filtering accuracy, strong anti-clogging ability, suitable for various liquid, gas and solid separation processes.
Application areas: widely used in filtration and screening systems in water treatment, petroleum, chemical, food, papermaking, mining and other industries.
Finally, through the precision welding process, the support rods are firmly welded to the wires to ensure that the wire wrapped screen structure is stable and durable. We specialize in the production of high-quality wires and support rods to meet different filtration needs.
Product Parameters
| Material | SS304 SS316 |
| Material | 202B 304 304L 316 316L 316Ti 321 430 8825, etc. |
| Specification | 0.5*1.0mm-5*10mm |
| Dimensions Tolerance | +/-0.01mm |
| Production Capacity | 1200ton/month |
| Package | Wooden reel/Steel reel |
| Shape | As required |

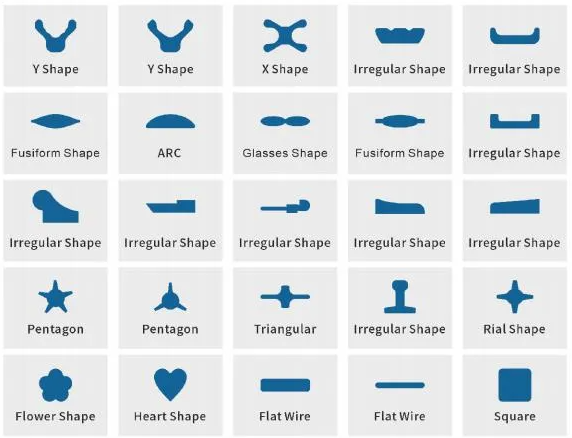

Available Types
