Profile bar/Support rod
Structural features: The support rod is made of high-quality stainless steel (304, 316L) or high-strength alloy material, which has the characteristics of corrosion resistance, high temperature resistance and wear resistance, and is suitable for working environments such as mining, oil and gas. The support rod can be customized with round, trapezoidal, rectangular or special-shaped sections according to different working conditions to ensure precise matching with the wedge wire winding and improve the stability and durability of the overall screen.
Function: The support rod is the key load-bearing component of the Wedge Wire Screen. It is mainly used to fix the wedge wire winding to ensure uniform gaps and a firm structure. At the same time, it determines the flow direction of the fluid and optimizes the filtration efficiency. The precision welding process firmly welds the support rod to the wire winding, so that the screen has a higher pressure bearing capacity and is suitable for high-intensity filtration environments.
Application areas: Widely used in water treatment, oil well filtration, petrochemical separation, food and pharmaceutical, mining screening, papermaking and environmental protection industries, suitable for deep well filters, rotary screens, drum screens, pressure screens and other equipment, providing efficient, stable and durable support solutions.
Product Parameters
| Material | SS304 SS316 |
| Specification | 0.5*1.0mm-5*10mm |
| Dimensions Tolerance | +/-0.01mm |
| Production Capacity | 1200ton/month |
| Package | Wooden reel/Steel reel |
| Shape | As required |
| Material | 202B 304 304L 316 316L 316Ti 321 430 8825 809C E300, etc. |

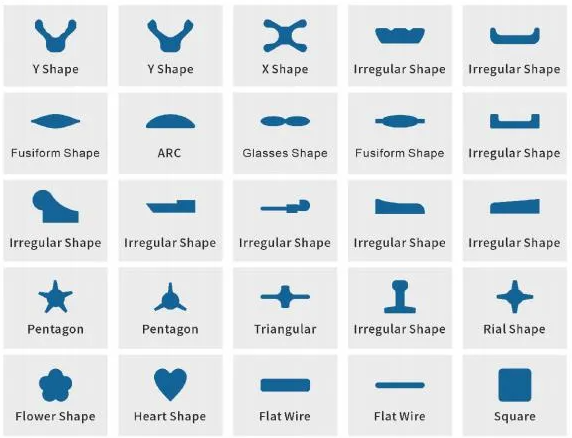

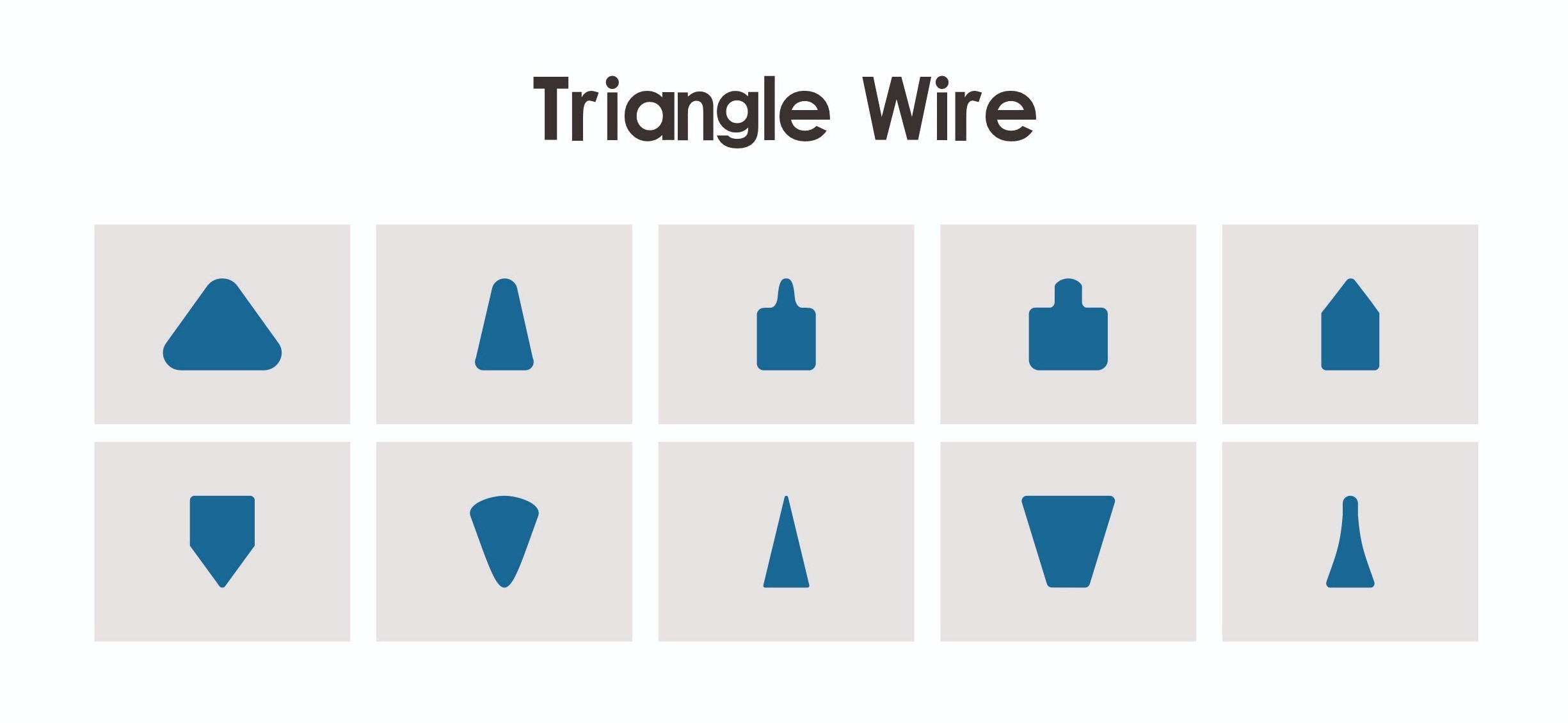

Available Types
