Irregular-profiled wire/Well slot wire
These special-shaped wires are all metal wire types used for filtration, screening and separation, and are usually made of stainless steel material. They have specific cross-sectional shapes such as V-shaped, groove-shaped or wedge-shaped to optimize the screening effect. Commonly used in the manufacture of screens, screen barrels, screen filters and water treatment equipment.
Features and Advantages
These wires are designed to provide high mechanical strength and corrosion resistance, suitable for high temperature, pressure and harsh environments, ensuring long-lasting and stable screening results. Their pore sizes can be customized as needed and are widely used in a variety of industrial applications.
Application areas
Water treatment: used to filter and separate particulate matter in water, and is widely used in water wells, groundwater extraction systems, etc.
Mining and Metallurgy: used for particle grading and screening during mineral treatment.
Food and Chemical Industry: Used for screening and filtration of materials during production.
Pulp screening: used for filtration and separation during pulp production, which can effectively remove impurities and uneven particles in the pulp.
Product Parameters
| Material | SS304 SS316 |
| Specification | 0.5*1.0mm-5*10mm |
| Dimensions Tolerance | +/-0.01mm |
| Production Capacity | 1200ton/month |
| Package | Wooden reel/Steel reel |
| Shape | As required |

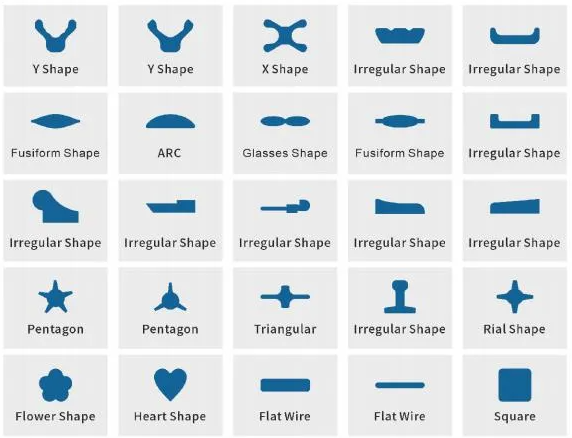

Available Types
