In the world of water treatment and chemical processing, ion exchange resins are a significant capital investment. However, a single failure in the distribution or collection system can lead to “resin escape”—a nightmare scenario where expensive beads are flushed into downstream equipment. This doesn’t just mean the loss of costly media; it leads to catastrophic pump damage, clogged valves, and unplanned plant shutdowns.
At Jingzhou, we define our high-performance wedge wire resin traps as the “Ultimate Shield.” Our mission is simple: to ensure your resin stays exactly where it belongs, providing a final line of defense that pays for itself through risk mitigation.
Why Wedge Wire is the “Ultimate Shield” for Resin Retention
Traditional mesh screens often struggle with clogging or structural deformation. Jingzhou wedge wire screen solves these issues through mechanical superiority.

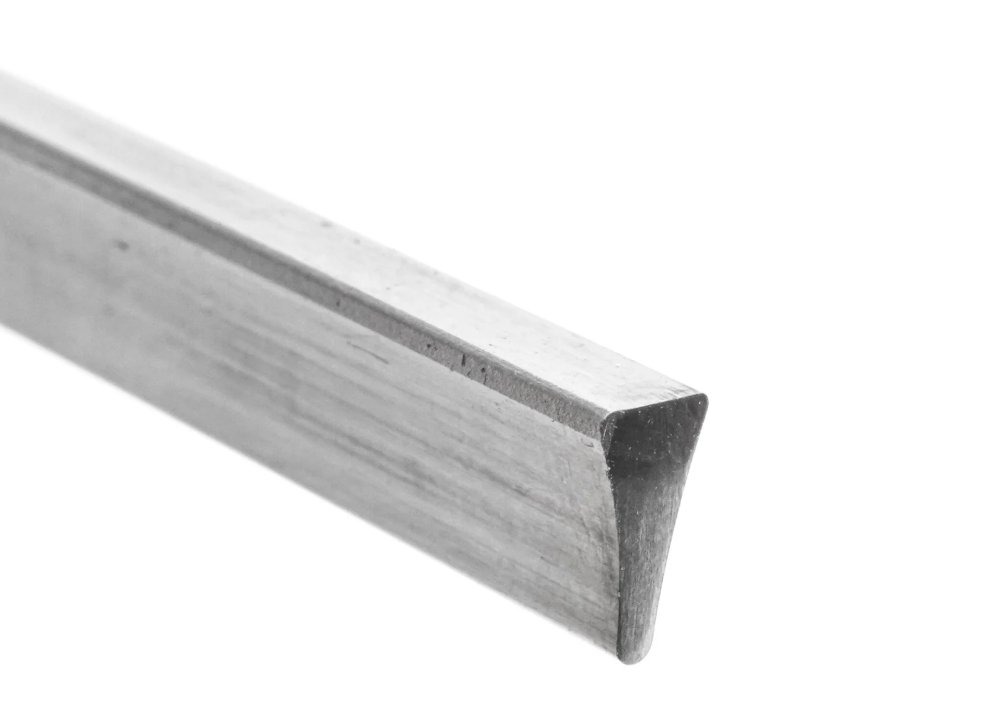

Precision Engineering: The V-Shaped Advantage
Jingzhou utilizes an advanced resistance welding process to fuse V-shaped profile wires onto support rods.
- Non-Clogging Geometry: The V-shaped wire creates slots that enlarge inwardly. If a particle passes the initial surface, it flows freely through without getting wedged.
- High Open Area: Compared to standard perforated pipes, our technology offers a larger effective filtration area, reducing pressure drop while maintaining 100% resin retention.
Specialized Customized Slot Designs by Jingzhou
Every ion exchange system has different resin bead sizes. We provide customized slot openings as narrow as 20μm with a tolerance of ±5μm. This precision ensures that even the finest grade resins are securely contained without sacrificing flow rates.
Shielding Your Bottom Line: Solving Critical Pain Points in Ion Exchange
Jingzhou products are designed based on the actual pain points of industrial operators.
Eliminating Downstream Contamination
In a recent application for a petrochemical plant, the client faced recurring resin leakage due to the failure of plastic internal laterals. By replacing them with Jingzhou stainless steel wedge wire screens, they achieved:
- Zero Resin Loss: Complete containment of expensive ion exchange beads.
- Downstream Protection: Prevented resin from entering high-pressure boilers, saving thousands in potential maintenance.
Durability Under High-Pressure Conditions
Industrial filtration often involves backwashing and high flow velocities. Jingzhou’s wedge wire is built from premium SS304 and SS316L.
- Structural Integrity: Our wedge wire screens withstand high differential pressure without collapsing.
- Corrosion Resistance: Crucial for systems handling acidic or alkaline regeneration chemicals.

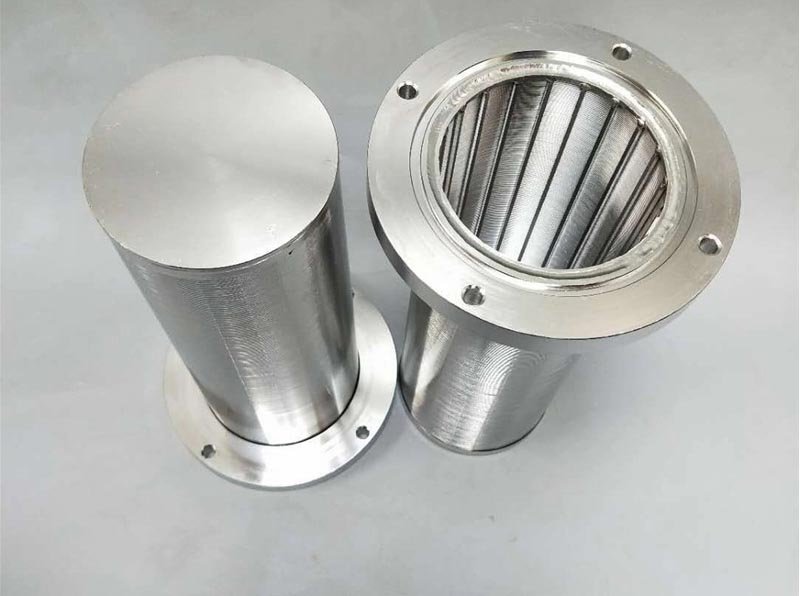

Why Partner with Jingzhou for Your Filtration Needs
As a leading manufacturer since 2009, Jingzhou combines technical R&D with large-scale production capacity (1200 tons/month).
Material Excellence and Global Standards
We strictly adhere to ISO 9001 standards. Every batch of wire undergoes rigorous tensile testing and 2D measuring projector inspection to guarantee that the customized specifications match your exact requirements. Whether it is ASTM A580 or specialized industrial grades, our materials are certified for global export.
Prototyping and customized Service Support
We understand that B2B procurement requires flexibility. Our services include:
- Fast Prototyping: Providing customized samples based on your technical drawings to ensure fitment and performance.
- Technical Consultation: Our engineers help you select the optimal wire diameter and support rod spacing for your specific operating pressure.
Secure Your System Today
Don’t let a small hardware failure compromise your entire ion exchange process. Invest in the durability and precision of Jingzhou wedge wire. Our customized industrial filtration solutions are designed to lower your total cost of ownership and eliminate the risk of resin loss.
Contact us today for a technical quote or to request customized samples.
- Email: jing@jingzhoumetal.com
- WhatsApp/Wechat: +8615320163118
FAQ
Q: What is the most common cause of resin loss in ion exchange systems?
A: Mechanical failure of internal distributors or lateral screens is the primary cause. Using high-strength wedge wire traps prevents beads from escaping even if an internal component breaks.
Q: How do I choose the correct slot size for a resin trap?
A: The slot opening should typically be 50% of the diameter of the smallest resin bead in the system. Customized precision is essential here to prevent clogging.
Q: Can wedge wire resin traps be used in high-temperature chemical processes?
A: Yes. Unlike plastic alternatives, stainless steel wedge wire maintains its structural integrity and corrosion resistance at high temperatures and in harsh chemical environments.
Q: Why is “V-shape” wire preferred over standard round wire for filtration?
A: The V-shape provides a “two-point” contact that minimizes the chance of particles getting stuck, making the screen self-cleaning and much easier to backwash effectively.
