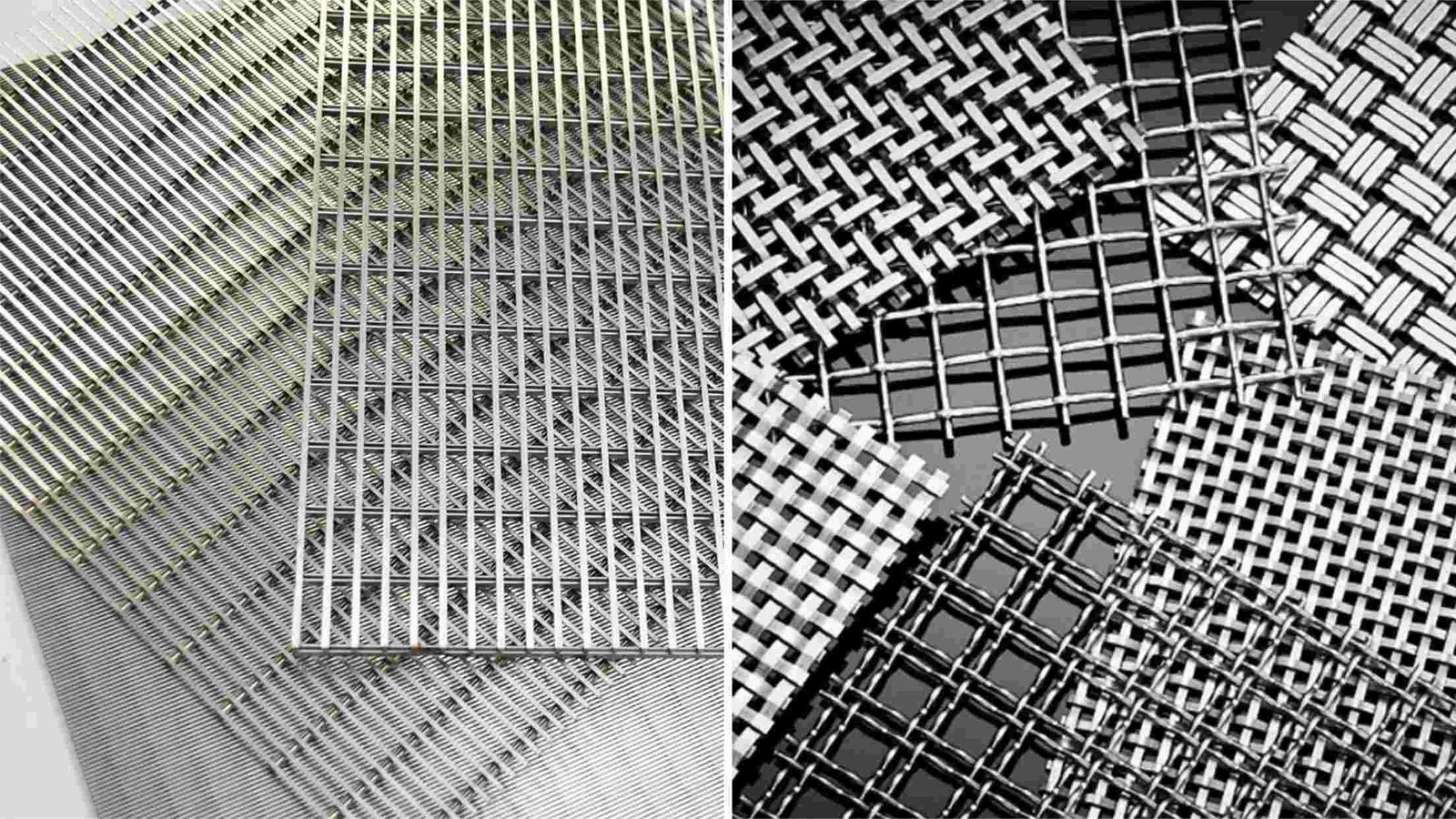

In tough industrial filtration under high pressure, picking between wedge wire screen and woven wire mesh goes beyond upfront price. It comes down to keeping operations running smoothly and making equipment last. Buyers and technical staff often deal with a key choice: does basic woven mesh work well enough, or does a carefully built wedge wire screen make more sense for the job?
At Jingzhou, a top maker of stainless steel wire since 2009, we focus on strong filtration products. Our work with worldwide business clients in mining, oil, and gas shows that wedge wire beats out regular woven mesh in spots with sudden pressure jumps.
Structural Integrity: Why Woven Mesh Fails Under Pressure
Woven wire mesh works fine for easier tasks. But its basic setup of crossed wires brings built-in weak spots when pressure builds up.
The “Shifting” Problem of Woven Wires
When strong water or air pressure hits, the wires in woven mesh can move or wear down. As a result, this causes several issues:
- Pore Distortion: The gaps turn irregular, so bigger bits slip past the filter.
- Material Fatigue: Ongoing force makes the mesh pull apart and break at the wire crossings over time.
- High Replacement Frequency: In fields like oil refining, these breakdowns lead to expensive downtime that slows output.
The Wedge Wire Screen Advantage: Engineered for Longevity
Wedge wire screen from Jingzhou differs from woven mesh because it forms a solid, welded frame. We apply modern resistance welding to join V-shaped wires to sturdy support bars.

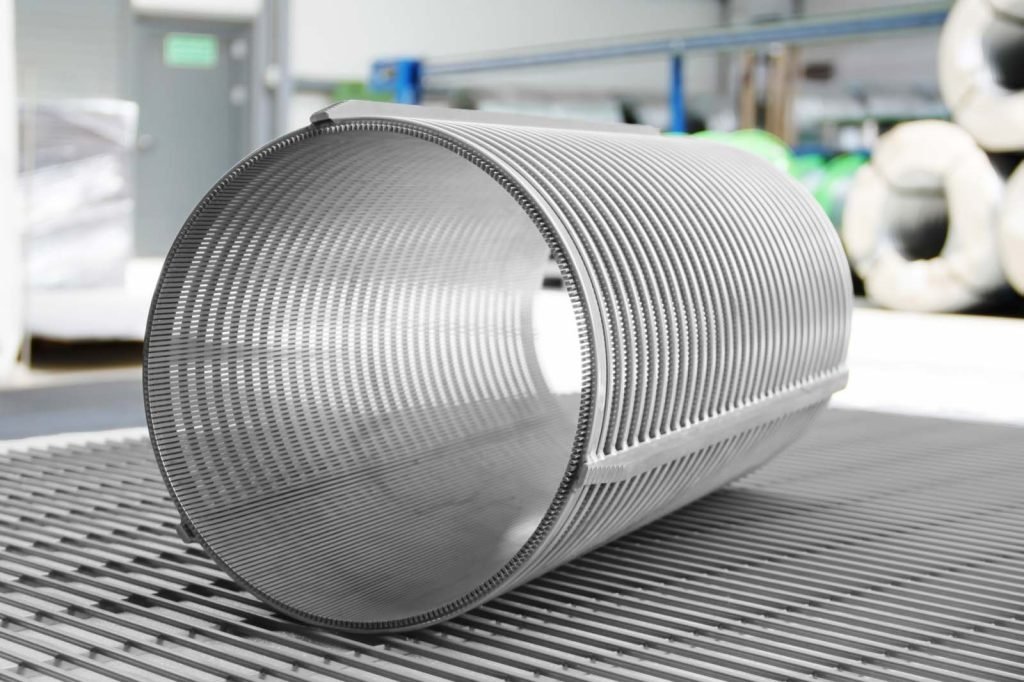

V-Shaped Technology and Non-Clogging Slots
The main strength comes from the V-shaped wire design.
- Point Contact Filtration: Bits only brush the front tips of the wedge wire screen. If something fits the entry gap, the slot opens wider inside, so it keeps moving without jamming.
- Structural Rigidity: Welds at each joint hold the screen’s customized slot size (down to 20μm) steady, even with strong reverse pressure or heavy weight.
Jingzhou’s Precision Manufacturing Standards
Our ISO9001-certified plant keeps tight control of details:
- Dimensional Accuracy: We hit marks within +/-0.01mm.
- High-Grade Materials: Choices like SS304, SS316L, and Titanium alloys fight off rust well.
- Scalability: Our output reaches 1200 tons per month, so we manage big orders while keeping quality high.
Solving High-Pressure Filtration Challenges
To address these rigorous demands, we provide targeted engineering solutions that transform high-pressure obstacles into stable operational performance. Our technical focus is specifically geared toward the following critical industrial sectors:
Water Treatment and Mining Infrastructure
Mining tasks like removing slime and draining water benefit from our customized wedge wire curved screens (DSM screens). Their tough build supports fast flows. This cuts down on the blocking that woven screens often face.
Oil & Gas and Petrochemical Solutions

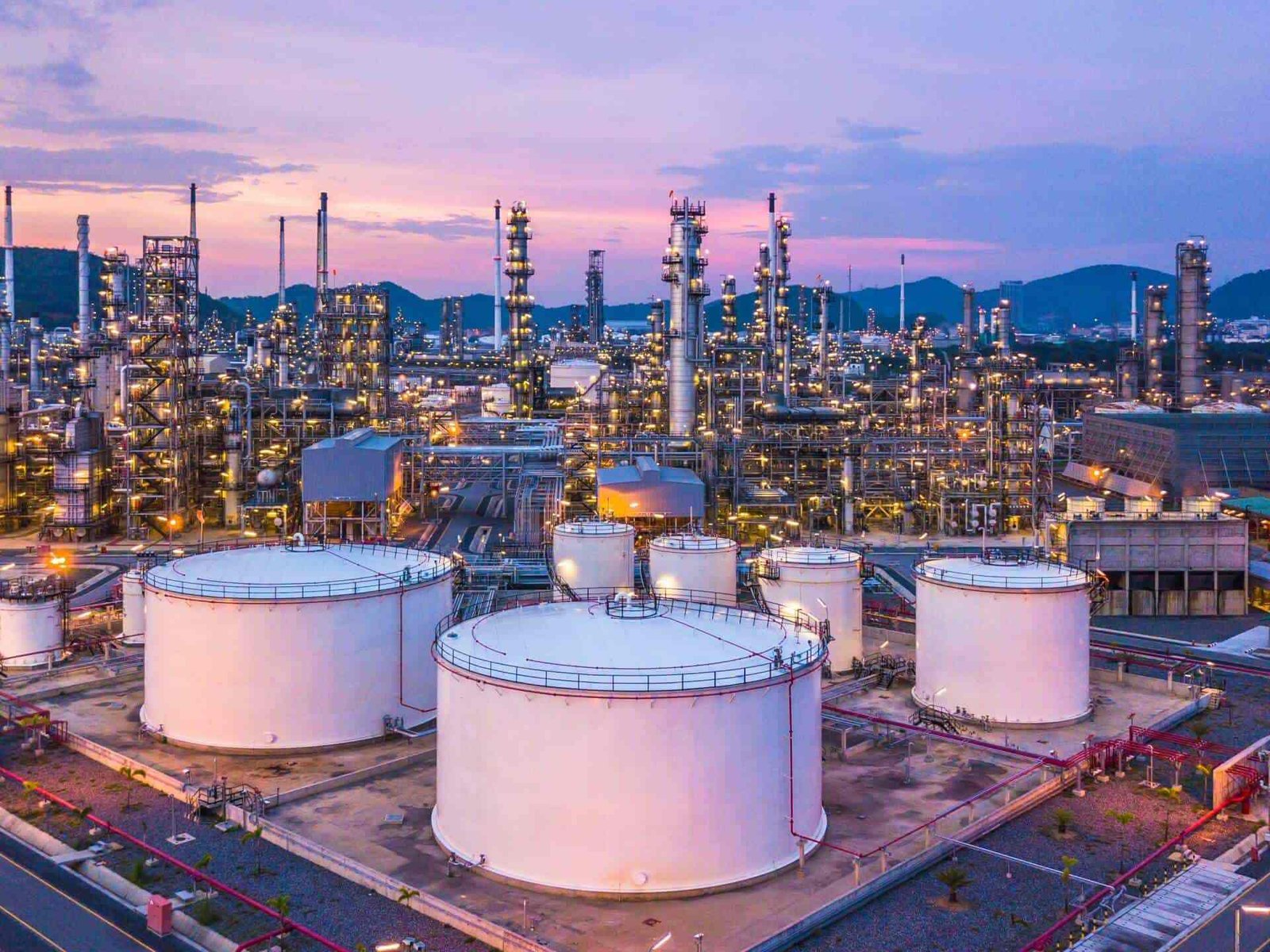

Crude oil processing needs filters that handle heat and pressure for removing sulfur and nitrogen. Jingzhou wedge wire screens fit into reactor parts and sand barriers. They stop unwanted shifts in filter media, an issue woven mesh struggles with in practice.
Customized Solutions for Global Industrial Needs
No two setups are exactly alike. Jingzhou takes pride in crafting customized stainless steel profile wires for particular uses. From set wire sizes and odd shapes to special wedge wire baskets for spinning machines, our design group delivers quick models and exact builds.
- Customized Slot Openings: Matched to your particular needs.
- Flexible Shapes: Offered as flat sheets, tubes, or tricky forms.
- Material Selection: Options like 316L for sea settings or Titanium for health and flight sectors.
Conclusion
To cut overall ownership costs, wedge wire screen stands out as the better pick for demanding pressure spots. It brings solid build strength, fewer repair bills, and far longer use than woven mesh.
Contact Jingzhou Today
Need a steady supplier for exact filtration screens in business deals? Reach to Jingzhou now. As a skilled maker, we gives fair prices for large buys and helps with technical details on your project.
- Email us: jing@jingzhoumetal.com
- WhatsApp: +8615320163118
FAQ
Q: Why is wedge wire screen called “non-clogging” compared to woven mesh?
A: Its V-shaped slots open wider on the inside. That means any particle that starts through will finish passing, unlike woven mesh, where bits catch in the wire overlaps.
Q: Can wedge wire screens be customized for existing filtration machinery?
A: Yes. Jingzhou offers customized plans with matching frames, slot sizes, and rod setups. These fit right into your ongoing plant gear.
Q: What is the typical lead time for a bulk wholesale order?
A: For ready materials, it usually takes 7-15 days. Customized or big runs need 10-20 days, based on details and volume.
Q: Is wedge wire suitable for high-temperature chemical processing?
A: Yes. With top stainless steel like SS316L or special metals, it holds up in strength and against rust at levels where other filters or woven types give out.
