In large-scale industrial work, what sets a solid filtration setup apart from expensive stoppages often hides in the frame below. When tough baskets handle huge amounts of rock or thick fluids, the force on the filter face builds up fast. If the backing isn’t strong, the top wedge wire can still bend out of shape. This brings screen warping and unwanted leaks. At Jingzhou, we focus on smart design for support rods. Our goal is to keep your gear accurate amid the toughest physical demands.

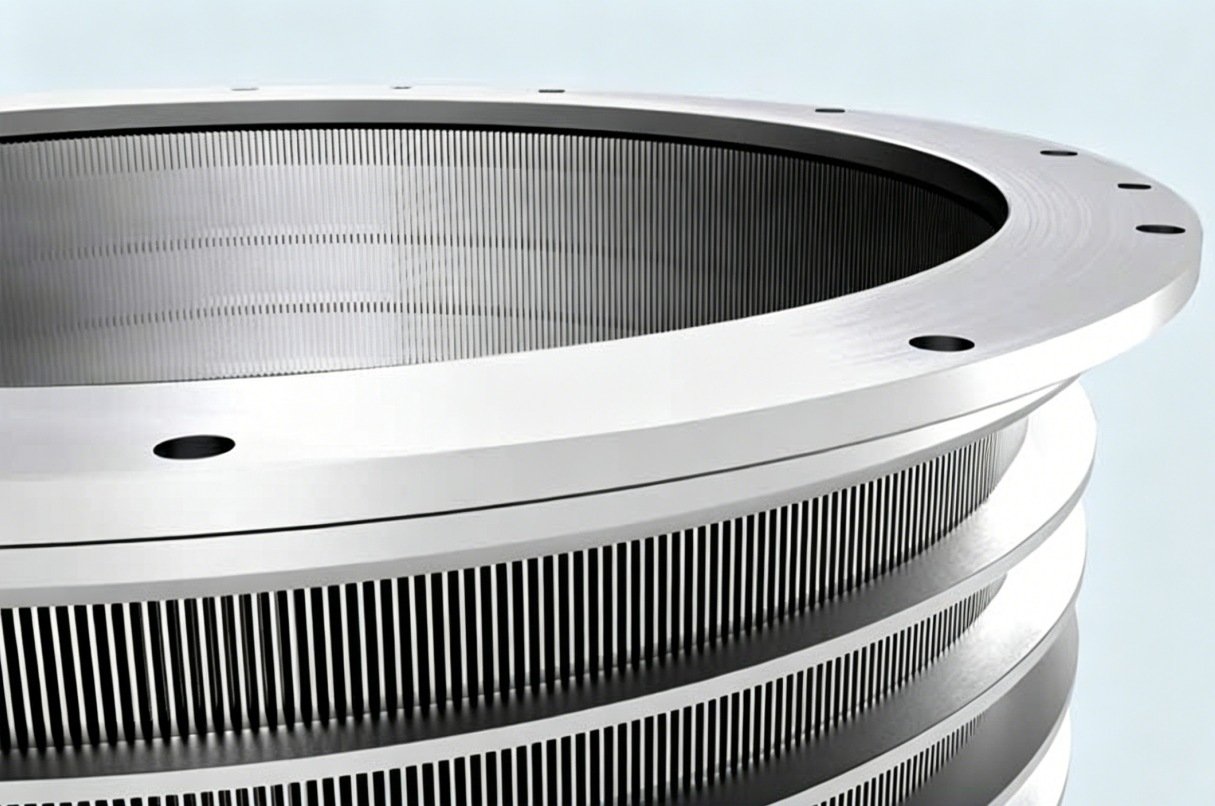

Engineering Behind Support Rods: Preventing Screen Deformation
Engineers need to dig past the top wires to fight wear and hold slot shapes steady. The key lies in the inner frame that holds everything together.
Reinforcement Dynamics: Why Support Rods Matter

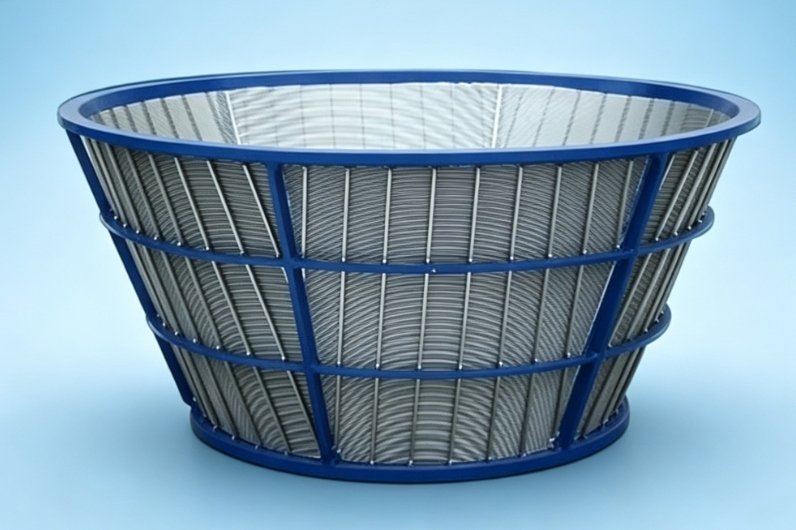

Support rods form the main spine of any wedge wire basket. They take in the side and end forces from quick spins or forced flows.
- Load Distribution: Good support rods spread the weight evenly over the whole area. They avoid spots of extra strain.
- Vibration Dampening: For filters that shake, the firm backing cuts down on repeated stress. This helps the filter last longer.
- Slot Accuracy: A stiff frame from support rods keeps gaps even. That’s vital for sorting particles correctly.
Customized Structural Integrity for Extreme Loads
Basic fixes fall short against special job hurdles. For that reason, Jingzhou supplies fully customized setups for support rods.

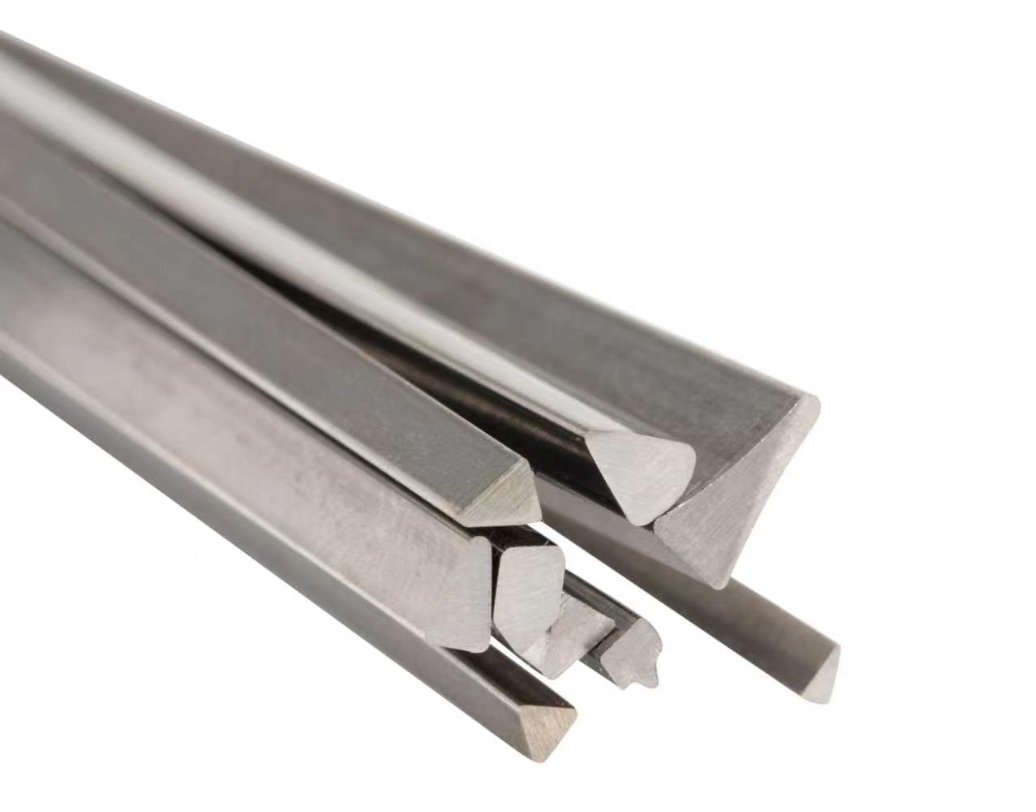

- Variable Geometry: Based on the task, we make customized rod forms like round, flat, or thick square ones. These balance power and weight well.
- Precision Welding: With automatic resistance welding, we join the top wire to each rod touch spot. The result is one strong, linked build.
- Material Selection: In harsh or hot spots, our customized picks cover SS304, SS316L, and Duplex steel. They match chemicals while staying tough.
Strategic Applications and Industry Solutions
Matching the backing specs to real-world pressures lets fields gain better returns and cut gear swaps.
Petrochemical Refineries: High-Pressure Stability
Catalyst bases and reactor cores face sharp pressure falls.
- The Problem: Frame shifts can move catalysts, leading to big damage further along.
- The Technical Edge: Our group crafts customized thick backings that go past vessel break limits. They deliver full trust in round-the-clock runs.
Mining and Mineral Processing: Impact Resistance
Coal draining and rock sorting put baskets under rough mixes and strong pulls.
- The Problem: Older filters get “bowing,” with the face dropping between rods.
- The Jingzhou Solution: We adjust customized rod gaps to shorten wire stretches. This boosts the basket’s hold-up power a lot.
Why Choose Jingzhou for Your Heavy-Duty Filtration Needs?
As a focused maker, Jingzhou knows steady work is key to business. Our help reaches past just providing parts. We offer:
- Engineering Consultation: We review your flow and pressure numbers to suggest the best rod setup.
- Customized Prototyping: Quick builds of customized tests to check fit and work.
- Strict Quality Control: Each tough basket gets full checks for complete welds and slot fits.
Leave weak filter parts behind. Reach out to Jingzhou now for a fair price on customized wedge wire options. Build a strong path for your filtration work.
[Contact our technical team for a Customized Quote]
FAQ
Q: How does support rod spacing affect the filtration efficiency?
A: Tighter gaps raise the break resistance and stop wire bends from pressure. As a result, slot sizes hold true for steady filter results.
Q: Can Jingzhou provide customized support rod shapes for non-standard equipment?
A: Yes, we produce wedge, round, square, and profiled rods to fit your equipment precisely.
Q: What are the signs that a support grid is failing in a heavy-duty basket?
A: Watch for odd wear on the face, more large bits in the output, or clear dips in the wedge wire.
Q: Is stainless steel the only material available for heavy-duty support rods?
A: SS304 and SS316L serve as basics. But we supply customized metals like SS321 or Titanium for spots needing more heat or rust protection.
