Sustaining Structural Integrity Under Extreme High-Pressure Differentials

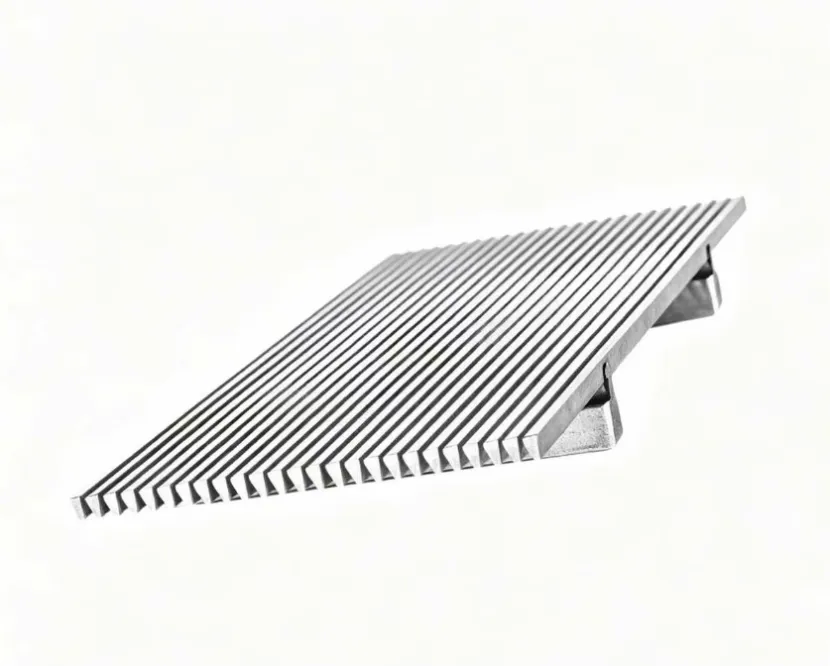

In major industrial filtration projects, sustained structural integrity under high-pressure differentials is paramount. Jingzhou Metal’s precision profile wire supports continuous, heavy-duty operation by optimizing hydrodynamic flow and mitigating particulate accumulation without deformation along the filtration line. Viewing the material from its fundamental cross-sectional geometry, the engineered tapered profile of the raw wire guarantees a divergent fluid gap once welded into a screen.
This specific geometric configuration dictates that solid particulates only interact with the outermost edge of the profile, drastically reducing the probability of deep-bed pore occlusion. This structural rigidity proves exceptionally critical for centrifuge baskets, rotary drum screens, and pressure vessels where premature screen failure precipitates catastrophic operational halts.
Material, Size, and Micro-Precision Tolerance Specifications
For high-volume OEM supply chains, maintaining dimensional consistency is non-negotiable. Jingzhou Metal engineers premium SS304 and SS316 stainless steel profile wire tailored specifically for these stringent filtration demands. We can provide various customized materials such as SS304/SS316/SS316L two-way stainless steel.
When executing bulk OEM orders, we reliably stabilize the profile cross-section tolerance to within a strict ±0.01 mm threshold. Our available dimension matrix spans configurations as fine as 0.5×1.0 mm up to robust 5×10 mm profiles. SS304 remains optimal for standard water treatment and powder screening operations.
Conversely, SS316 provides superior resistance for petrochemical and marine filtration projects subjected to highly corrosive, chloride-rich environments. Backing these critical applications is our 18,000-square-meter facility, capable of processing 1,200 tons monthly to guarantee supply chain continuity.
Manufacturing Process Controls Dictating Filtration Accuracy
Filtration rating accuracy is strictly dictated by exacting control over the metallurgical manufacturing sequence. Jingzhou Metal initiates the process by alleviating internal material stresses through an initial round wire annealing phase. Following this thermal treatment, the raw stainless steel wire rod undergoes high-pressure cold-drawing to aggressively enhance tensile strength and diameter baseline precision. The material is then subjected to precision shaped rolling to form the foundational V-geometry, followed by a secondary annealing cycle to fine-tune ductility for downstream screen welding.
A final fine-drawing pass establishes the exceedingly tight cross-sectional tolerances. Crucially, to achieve a low-roughness surface finish, we systematically electropolish and passivate the formed metal, a distinct final step that directly optimizes the hydraulic efficiency and corrosion resistance of the eventual filter.
Stringent Quality Inspection for Assemblies in OEM Filters
For OEM filter manufacturers, uncompromising validation of materials and dimensions is mandatory. Before any active processing begins, incoming raw metal heats are subjected to independent third-party spectrometer analysis alongside our internal audits to verify the exact alloy grade against mill certificates. A tensile force meter validates critical mechanical properties, including yield strength and elongation limits.
During active extrusion and drawing, we deploy continuous dimensional monitoring via infrared technology to instantly flag coil-to-coil variation. Furthermore, our rigorous batch sampling protocol requires a comprehensive 1D and 2D projector inspection of the cross-sectional geometry for every 500 kilograms of output. These multi-tiered protocols dictate the structural accuracy of the final screen, rather than merely serving as retroactive documentation for quality records.
Strategic Advantages of Our Manufacturing Partnership
Beyond merely supplying standard wire since 2009, Jingzhou Metal operates as a seamless extension of your own engineering department. We hold ISO9001 certification and equipment patent certificates.Our core operational advantage lies in rapid, application-specific tooling development. Upon receiving proprietary OEM technical drawings, our in-house engineering team designs custom die tooling and outputs precision physical prototypes within an accelerated 7-to-10-day sampling cycle.
By controlling the entire tooling and prototyping phase internally, we empower filter manufacturers to transition seamlessly from the initial validation stage directly into highly stable, minimal-deviation commercial batch production.
OEM Supply Chain & Compliance FAQ
Q1: How do you verify material authenticity and dimensional compliance for international OEM clients?
Before initiating mass production, Jingzhou Metal executes a strict pilot approval protocol. We submit a comprehensive validation package containing raw material mill test certificates (MTCs), independent metallurgical lab results, and optical tolerance inspection data tied directly to the physical prototype. Bulk manufacturing strictly commences only after formal engineering sign-off from the client.
Q2: Can the production process be adapted for filtration systems facing severe abrasive wear?
Absolutely. For applications exposed to aggressive particulate abrasion, we bypass standard processing parameters. We source specific high-durability alloys and conduct pre-production mechanical stress evaluations. This data enables our engineers to customize the thermal annealing cycles, fundamentally enhancing the wire’s structural wear-resistance without derailing your established procurement schedules.
Q3: Are you capable of manufacturing non-standard profile geometries beyond typical wedge wire catalogs?
Yes, bespoke tooling is our specialty. If your filtration equipment requires an entirely unique wire profile or specific structural interlocking features not found in standard catalogs, our tool-and-die department will machine custom rolling dies to match your exact CAD specifications, ensuring flawless integration into your final filter assembly.
