In industrial filtration, the difference between peak efficiency and a total system shutdown often comes down to the quality of a single wedge wire screen. For facilities in water treatment, petrochemicals, and mining, a wedge wire installation that suffers from vibration or clogging is a ticking financial time bomb. As a specialized manufacturer, Jingzhou has observed that most operational failures are not due to the technology itself, but rather to improper selection or poor manufacturing tolerances.
Common Wedge Wire Installation Challenges and Practical Fixes
Installing wedge wire requires a deep understanding of fluid dynamics and structural stress. When a wedge wire screen is not perfectly aligned or sized for the application, several critical issues can arise.
Addressing Clogging with V-Shaped Precision
Clogging is perhaps the most frequent issue in solid-liquid separation. Standard wire mesh often traps particles within its weave, leading to “blinding” and increased backpressure. The fix lies in the geometry of the wire itself. Jingzhou utilizes a specific V-shaped profile (also known as V-wire) that is welded onto support rods.
This design creates a slot that enlarges inwardly. Because the opening is narrowest at the surface and widens toward the discharge side, particles that pass the initial gap are unlikely to get stuck. If clogging persists, it is often a sign that the slot size was not correctly customized to the particle distribution of the media. We provide customized slot ranges from 20μm to 3000μm with a strict tolerance of ±5μm to ensure the perfect balance between flow rate and filtration precision.
Mitigating Vibration and Structural Misalignment
Vibration and misalignment usually stem from a lack of mechanical strength or a poor fit within the vessel. High-pressure flows can cause a wedge wire screen to buckle if its vertical and horizontal strength is insufficient. Lateral bending of the wedge wire can result in the loss of slot precision, allowing oversized contaminants to pass through.
The practical fix is to ensure the wedge wire screen is customized with the correct support rod frequency and frame type. At Jingzhou, we offer various customized framing options, including “L”-shaped frames and reinforced 5x10mm frames, to provide the necessary rigidity for high-load environments. Our cold-drawn process and subsequent annealing ensure the wire retains high tensile strength and ductility, reducing the risk of fatigue-induced failure under constant vibration.
The Jingzhou Advantage: Precision-Engineered Solutions
Since 2009, Jingzhou has committed to producing stainless steel profile wires that exceed industry standards. Operating from an 18,000-square-meter facility in Tianjin, we combine high-volume production with boutique-level precision.
Advanced Quality Control and Material Integrity
To prevent the common problems of misalignment and material degradation, Jingzhou employs a rigorous multi-stage inspection process:
Infrared Detectors: We monitor dimensional variation across every coil to ensure a consistent +/-0.01mm tolerance.
Spectrometer Analysis: We verify the chemical composition of our alloys (including 304, 316L, and Duplex) to ensure they meet the specific corrosion resistance requirements of your industry.
Tensile Force Meters: Every batch is tested for mechanical performance and durability to withstand the harshest industrial pressures.
Comprehensive customized Manufacturing for Complex Needs

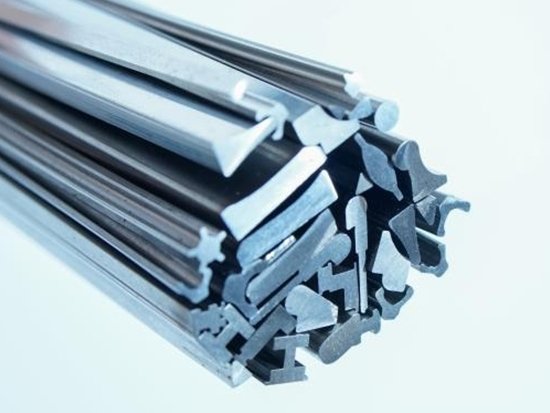

We understand that “off-the-shelf” solutions rarely solve specialized problems. Jingzhou prioritizes customized production based on client drawings and specifications. We can produce customized shapes beyond standard V-wire, including triangular, T-shaped, and wedge-shaped profiles.
Whether you require a customized curved DSM screen for dewatering or a customized resin trap to protect downstream equipment, our engineering team manages the process from wire rod to the final fine drawing. This customized approach ensures that the wedge wire screen integrates seamlessly into your existing system, eliminating the gaps and misalignments that lead to operational failure.
Preventive Maintenance for Extended Screen Life
Even the best customized wedge wire requires oversight. We recommend regular inspections using our site-specific guidance to check for abrasive wear on the profile tops. By utilizing Jingzhou’s high-strength designs and high-grade stainless steel, plant operators can significantly reduce their total cost of ownership through fewer replacements and less frequent maintenance stops.
FAQ
Q: Is Jingzhou a trading company or a direct manufacturer?
A: We are a direct factory located in Tianjin, providing customized stainless steel products since 2009.
Q: Can you provide customized samples for specific project requirements?
A: Yes, we provide customized samples. The cost is typically determined by the quantity of the final order.
Q: What materials do you offer for high-corrosion environments?
A: We primarily use 304 and 316L stainless steel, but we also offer customized production using high-grade alloys like Duplex.
Q: How does Jingzhou ensure the precision of the slot openings?
A: We use 1D and 2D projectors and infrared detectors to ensure all customized dimensions stay within strict quality limits.
