In fields like mining, mineral handling, and wastewater plants, wedge wire screens often take the hardest beating on the line. Strong vibrations in panels and centrifuge setups put heavy strain on filtering parts. Common wire mesh breaks down quickly from this wear. Wires snap, causing expensive stops in production. As a direct maker, Jingzhou knows that lasting in these spots calls for close attention to build strength, exact shapes, and made-to-fit plans. This approach brings long-term use and steady work output.
The Mechanical Challenges of High-Vibration Environments
Vibrating machines run at fast rates that bend or crumple screen parts from the sides. Weak spots at the joints tire out and fail over time. The field has turned to welded Wedge wire screen builds to fix this. These differ from woven types. Workers weld V-shaped wire to support rods. The result is a stiff setup that stands on its own.
Critical Design Considerations for Vibrating Wedge Wire Screens
Engineering Structural Strength: Horizontal vs. Vertical Integrity
In heavy shaking, the direction matters a lot. At Jingzhou, we shape profiles so horizontal hold grows fast with width. This stops side-bending that could mess up slot sizes. At the same time, depth adds vertical power against heavy loads pressing down. Our automatic resistance welding goes deep. It forms joints that hold firm between the wire and rod.
Precision Slot Tolerances and Non-Clogging V-Wire Geometry
Good flow depends on keeping the wedge wire screen open. Our V-shaped “Vee-Wire” widens the gap inside. Material shaking over the top lets bits small enough to enter pass right through. They rarely stick. This keeps the surface clear in long runs. Jingzhou supplies made-to-order slots from 20μm to 3000μm. We hold them to ±5μm. Tight sizes like this give clean cuts in sizing jobs under vibration.

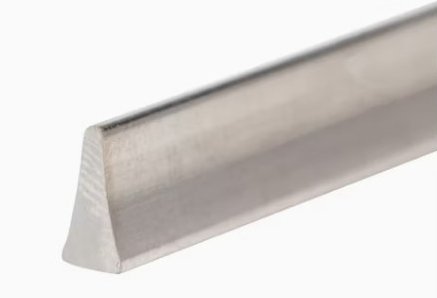

Advanced Material Selection for Extreme Durability
Vibration pairs with scraping and rust in many cases. The 300-series steels (304, 316L, 321) remain popular for their fair price and rust resistance. Jingzhou also stocks stronger types like 904L and Duplex. These run longer in rough spots. For special chemical or aerospace needs with high heat and low weight, we supply custom titanium and titanium alloy wires.
Specialized Products for High-Impact Applications
Wedge Wire Curved Screens (DSM) for Efficient Classification
The Wedge Wire Curved Screen, known as a DSM screen, works well for early water removal and slime separation. Its bent shape handles more material than flat ones. Flow improves noticeably. At Jingzhou, we build these with custom curve levels and angles (such as 45°, 60°, or 120°). They drop into coal or mineral plants without changes.

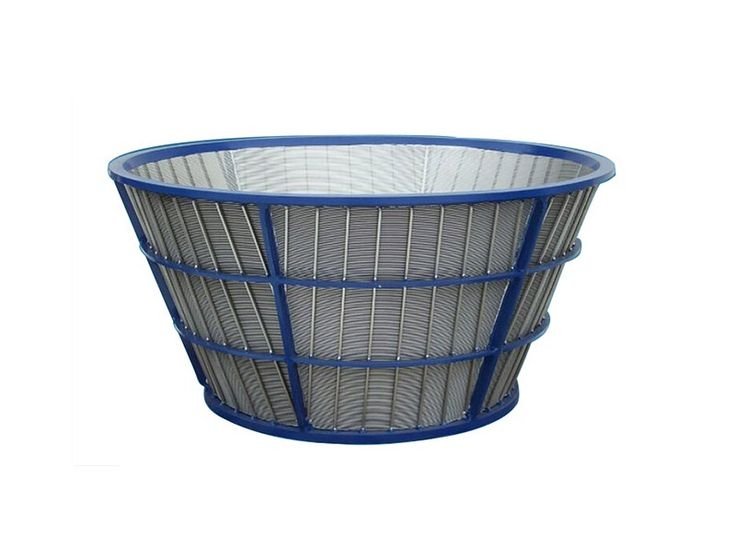

Wedge Wire Baskets for Centrifugal Strength
Centrifuges face the toughest forces. Our Wedge Wire Basket holds up with its own strong build in sugar and starch work. Fine Vee-Wire stops blocking. We add custom rings and edges to keep the shape during fast spins. Plants see fewer bends and longer runs between fixes.
The Jingzhou Advantage: Customized Engineering and Quality Assurance
Sophisticated Quality Control and Testing Protocols
From our 18,000-square-meter site in Tianjin, Jingzhou sticks to high standards. Advanced checks back performance in shaking setups. Infrared tools watch the size shifts on each wire roll. Spectrometers confirm alloy makeup. Pull testers measure top strength before wires leave. These steps spot weak points early in hard-use fields.
Comprehensive Customized Manufacturing Services
At Jingzhou, we see that no two jobs match exactly. A full custom service covers particular needs. This includes custom wire forms (V-shaped, triangular, T-shaped), custom edge types (L-shaped or plain), and custom rod setups. For new trials or big upgrades, we supply custom samples. Teams check tech and cost fit first. Many sites adjust gap widths or rod counts. Fine work needs close slots. Coarse feeds allow wider ones. Extra supports cut sag on large curved panels. Titanium suits hot acid flows where steel wears fast. Duplex handles salty streams. Talks with plant staff lead to scaled plans. Test runs confirm flow and hold on real machines.
FAQ
Q: Are you a trading company or a direct manufacturer?
A: We are a direct factory with three advanced production facilities in Tianjin covering 18,000 square meters.
Q: Can you provide customized slot sizes for high-vibration screens?
A: Yes, we offer customized slot sizes from 20μm to 3000μm with a high-precision tolerance of ±5μm.
Q: What is the typical lead time for a customized order?
A: Generally, it is 7-15 days for in-stock items or 10-20 days for customized orders, depending on the quantity.
Q: Do you offer specialized materials like titanium for harsh environments?
A: Yes, we provide customized wires in various alloys, including stainless steel 316L, Duplex, and Titanium for extreme conditions.
